Getting Started

All-in-one software solution for structural design, FEA analysis, and verification according to standards

Licensing

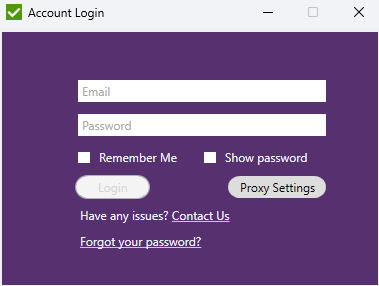

After the installation SDC Verifier is not licensed. The Login window appears:

Put an email and password to log in. Check Remember Me to save credentials and further automatically log in.

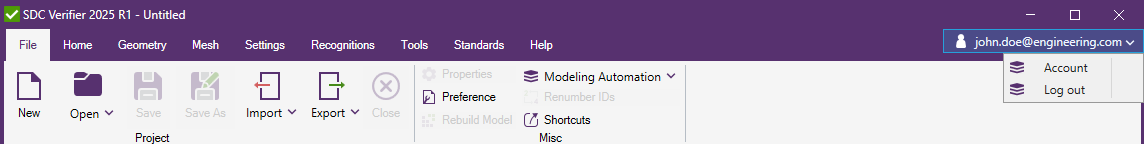

For more information about license or log out use menu on main window:

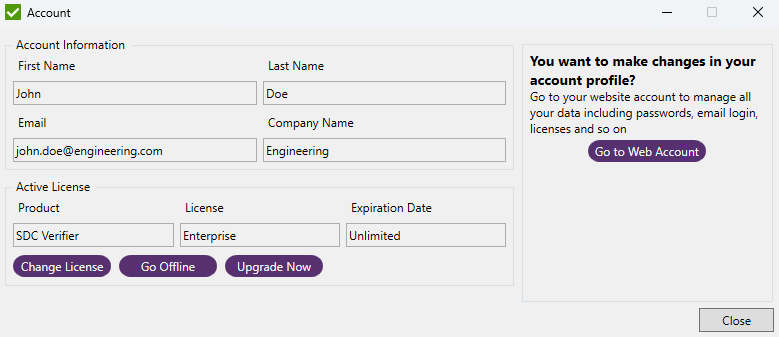

Press Account to open Account Window:

Press Change License to switch to any available license from the list.

NOTE: expired licenses will be shown.

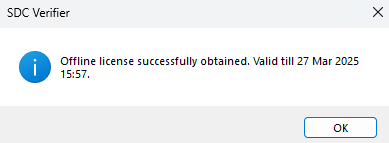

Press Go Offline to use SDC Verifier without an Internet connection. Message with expiration date will appear:

Go Offline button will be replaced with Go Online.

The license will become blocked for another users. After expiration SDC Verifier will return to an usual mode which requires Internet connection. It is possible to go online mode before expiration by pressing Go Online.

Returning to an online mode will unblock the license for others.

Press Upgrade Now to contact SDC Verifier.

Press Go to Web Account to go to the web account page to manage all user`s data including credentials.

Proxy settings

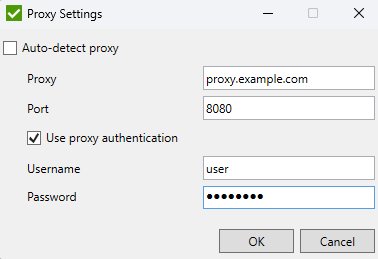

If proxy software is used to limit access to internet resources, floating license requests can fail and SDC Verifier will be not licensed. Press Proxy Settings on License Manager form to configure proxy settings:

Auto-detect proxy - used by default when no proxy software is used. Default system web proxy settings will be used. If this option is turned off, the proxy settings have to be set manually.

If proxy authentication is used by the proxy software, it is necessary to fill in the username and password.

Note: Proxy settings are encrypted and stored on the local machine.

Note: Request proxy settings details from a network administrator if it is necessary.

Alternatively, proxy settings can be configured in Preferences.

In case of any questions, suggestions or problems please send an e-mail to support@sdcverifier.com or visit the site sdcverifier.com.
